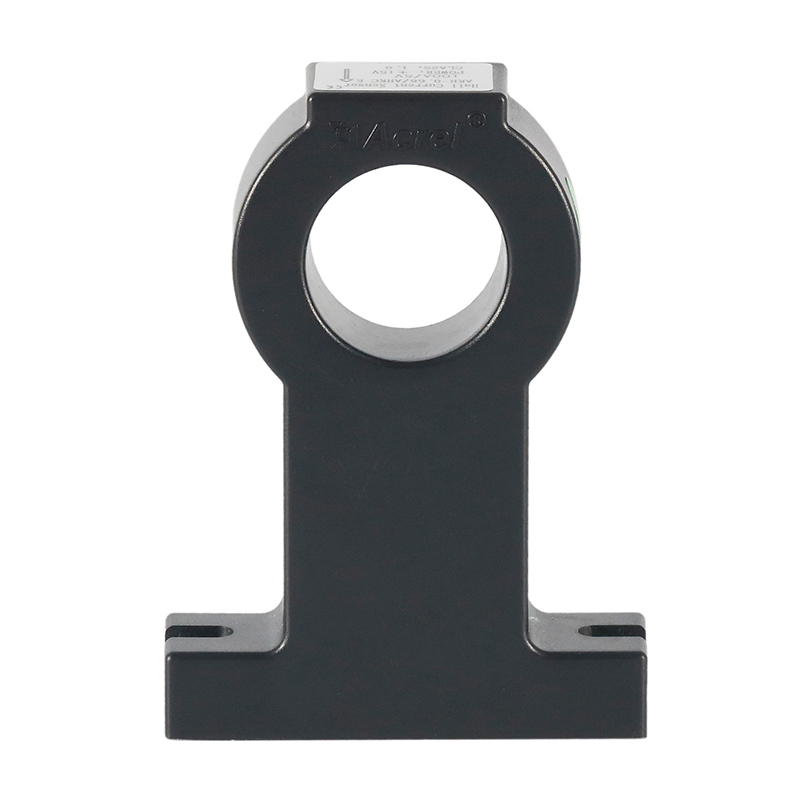

AHKC-EA open loop hall effect current transducer

● Open loop
● Rated input current:AC/DC0~(200-1000)A
● Rated output voltage:5V/4V
● Measuring Aperture:20mm
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • AHKC-EA

  • ACREL

Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE
Application: Acquisition and feedback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.

AHKC-EA open loop hall effect current transducer


The principle of hall effect, the transformed signal can be directly collected and accepted by AD, DSP, PLC, secondary instrument and other devices.It has the advantages of fast response time, wide range of current measurement, high accuracy, strong overload ability, good linearity and strong anti-interference ability.


Product Description


hall effect current transducer

Rated input current:AC/DC0~(200-1000)A


Rated output voltage:5V/4V


Measuring Aperture:20mm


Power supply:±15V


Size / Dimension:72*53*16mm


Accuracy:1.0



hall effect current transducer 500A

Zero offset voltage: ±20mV


Offset current drift: ≤±2.0mV/ºC


Linearity: ≤0.2%FS


Response time: ≤5us


Frenquency:0~20kHz


Insulation voltage: 2.5kV/50Hz/1min


Power consumption:0.5W




Dimension
 Dimension: 72*53*16mm

Aperture/

Hole size:

20mm

AHKC-E dimension



Installation

15V installation

wiring

Parameter

Parameters

Indicators

Measuring Aperture20mm
Size / Dimension72*53*16mm
Rated input current0~(200-1000)A
Rated output voltage5V/4V
Accuracy1.0
Power supply±15V
Zero offset voltage±20mV
Offset voltage drift≤±2.0mV/ºC
Linearity≤0.2%FS
Response time≤5us
Frenquency0~20kHz
Insulation voltage

2.5kV/50Hz/1min

Working temperature

-40ºC~85ºC

Storage temperature

-40ºC~85ºC

Power consumption

≤0.5W
