AHKC-LT open loop hall effect current transducer

● Open loop

● Rated input current：AC/DC0~(100-800)A

● Rated output voltage：5V/4V

● Measuring Aperture：32.5mm


Availability:



Inquire Add to Basket

Model:
AHKC-LT
Brand:
ACREL

Download

Manual of AHKC-LT：Manual of hall effect current transducer.pdf

CE of AHKC-LT:CE of current transducer.pdf

Product Description

Overview

Brand:Acrel	Place of Origin：China	Certificate：CE
Application: Acquisition and feedback control of current signals in the current monitoring,inverter,solar power management,current cabinet,DC motor drive and UPS servo control systems.

AHKC-LT open loop hall effect current transducer

The principle of hall effect, the transformed signal can be directly collected and accepted by AD, DSP, PLC, secondary instrument and other devices.It has the advantages of fast response time, wide range of current measurement, high accuracy, strong overload ability, good linearity and strong anti-interference ability.

Product Description

Rated input current：AC/DC0~(100-800)A

Rated output voltage：5V/4V

Measuring Aperture：32.5mm

Power supply：±15V

Size / Dimension：90*73.5*25mm

Accuracy：1.0

hall effect current transducer manufacture

Zero offset voltage: ±20mV

Offset current drift: ≤±2.0mV/ºC

Linearity: ≤0.2%FS

Response time: ≤5us

Frenquency:0~20kHz

Insulation voltage: 2.5kV/50Hz/1min

Power consumption：≤0.5W

Dimension

Dimension：

90*73.5*25mm

Aperture/

Hole size:

32.5mm

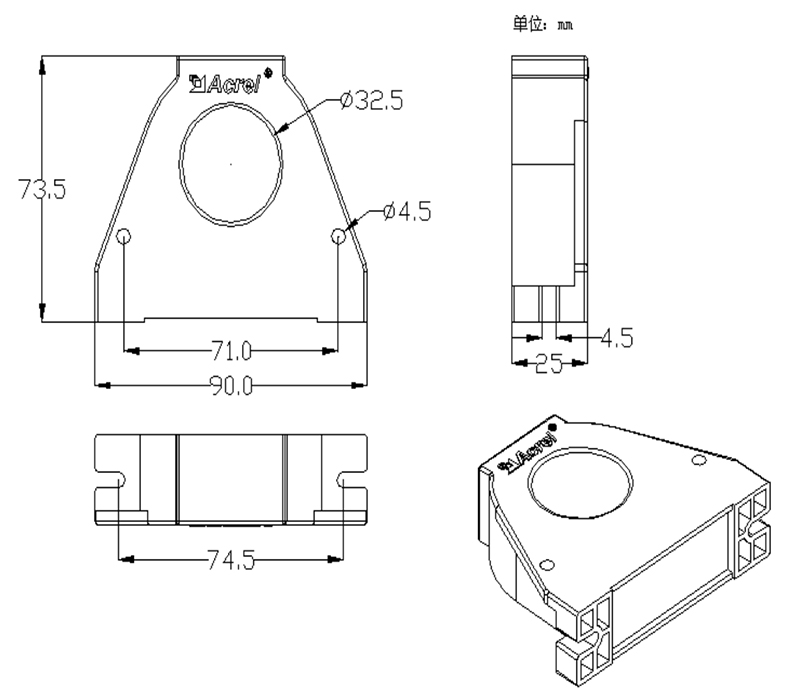

dimension AHKC-LT

Installation

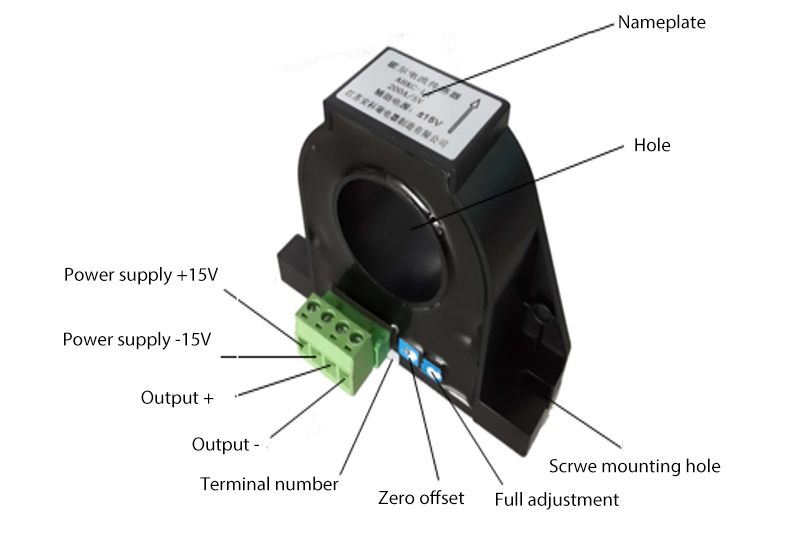

detail of AHKC-LT

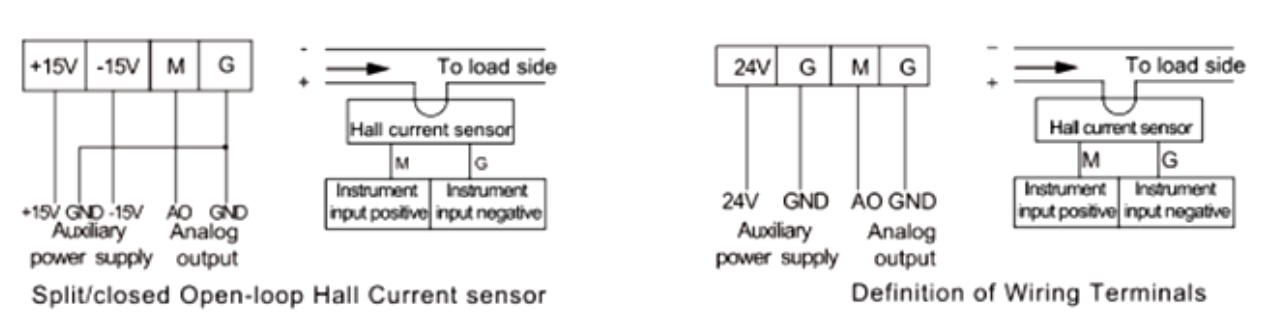

wiring

Parameter

Parameters	Indicators
Measuring Aperture	32.5mm
Size / Dimension	9073.525mm
Rated input current	0~(100-800)A
Rated output voltage	5V/4V
Accuracy	1.0
Power supply	DC±15V(Allow the volatility±20%)
Zero offset voltage	±20mV
Offset voltage drift	≤±2.0mV/ºC
Linearity	≤0.2%FS
Response time	≤5us
Frenquency	0~20kHz
Insulation voltage	2.5kV/50Hz/1min
Working temperature	-40ºC~85ºC
Storage temperature	-40ºC~85ºC
Power consumption	≤0.5W
