AIM-D200-CAI DC Insulation Monitor

AIM-D200-CAI DC insulation monitor can be used in 100 ~1000V DC systems for online monitoring of the insulation resistance of the positive and negative poles of an ungroundedDC system. When the insulation resistance is lower than the set value, it will send warning or alarm signal.


Availability:



Inquire Add to Basket

Model:
AIM-D200-CAI
Brand:
ACREL

Download

AIM-D200-CAI DC Insulation Monitor User Manual.pdf

Product Description

Overview

Brand：Acrel

Place of Origin：China

Application: EV Charger

With the development of industry, many electrical equipment and factory equipment are powered by DC systems, and the positive and negative poles of the DC system are not grounded. For ungrounded (IT) power distribution systems, insulation resistance should be monitored to ensure the safe operation of the power supply system.

AIM-D200-CAI DC insulation monitor can be used in 100 ~1000V DC systems for online monitoring of the insulation resistance of the positive and negative poles of an ungroundedDC system. When the insulation resistance is lower than the set value, it will send warning or alarm signal.

The product is based on the unbalanced bridge principle, which avoids the problem that the balanced bridge cannot detect the insulation resistance when ground fault at both the positive and negative poles.

The product is mainly designed for DC 0~1000V range of electric vehicle charging device insulation monitoring, but also can be applied in energy storage DC, substation DC screen, UPS power supply system, photovoltaic DC system and other DC power grid DC system.

Specifications

AIM-D200-CAI

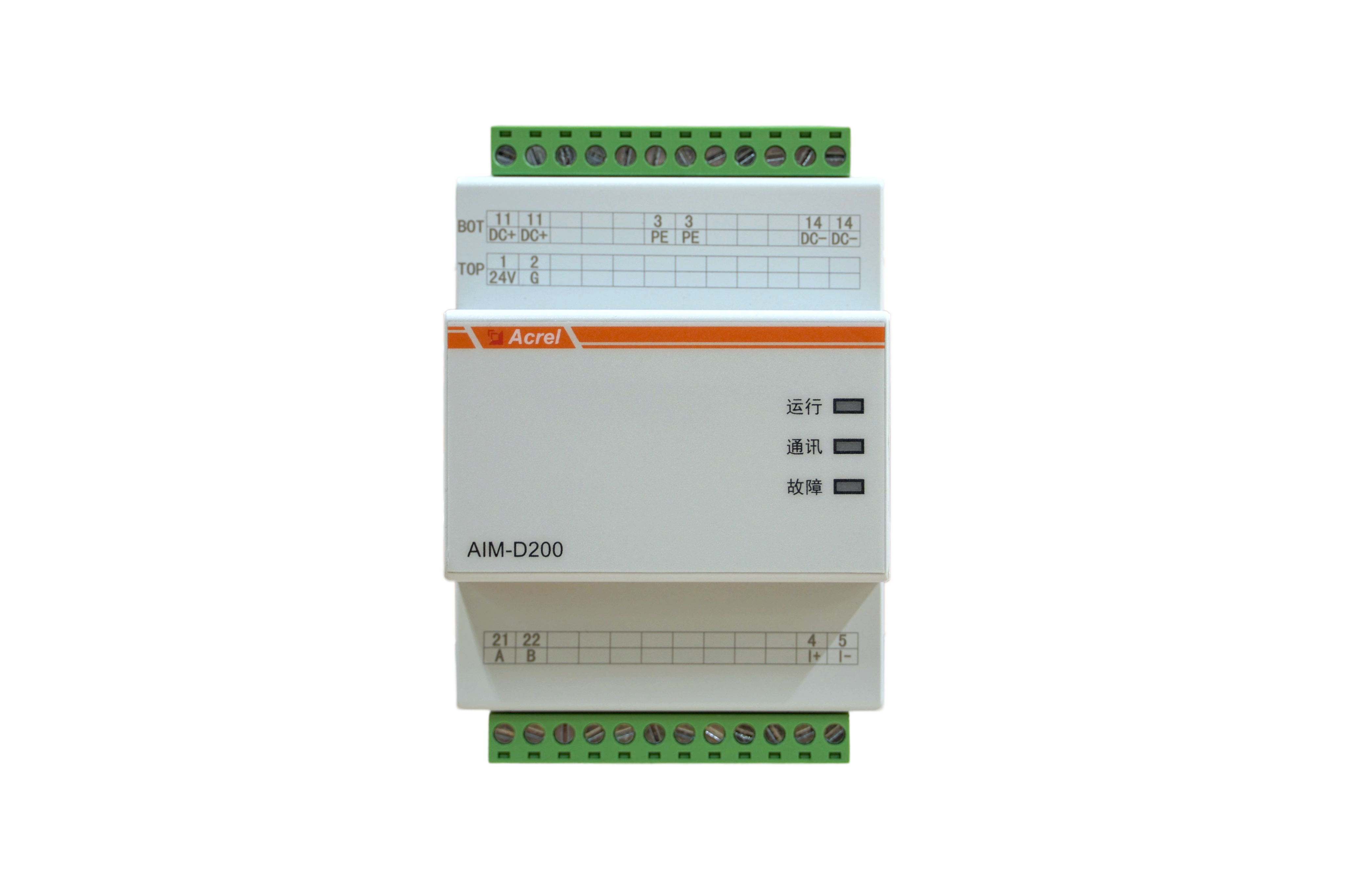

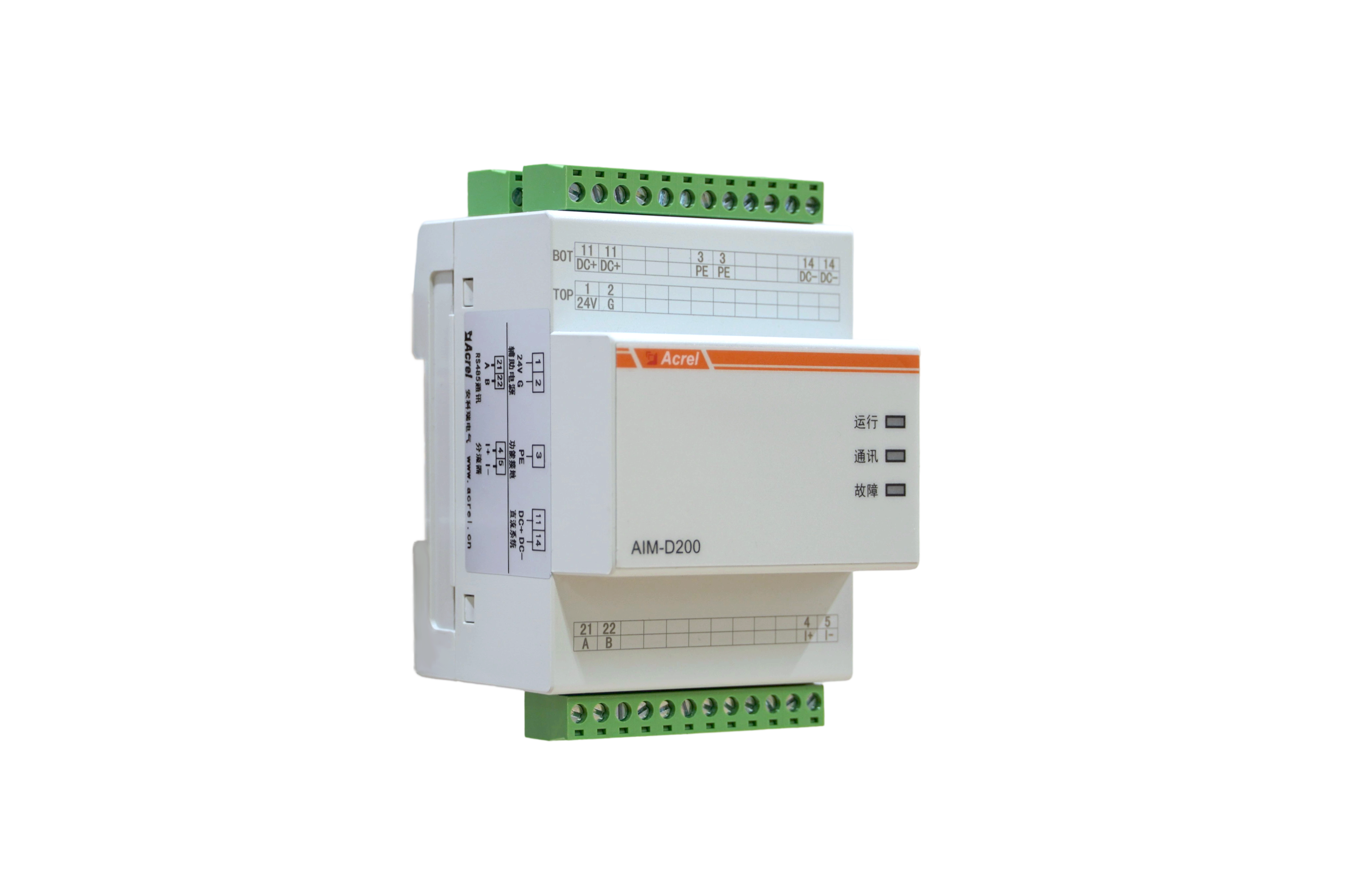

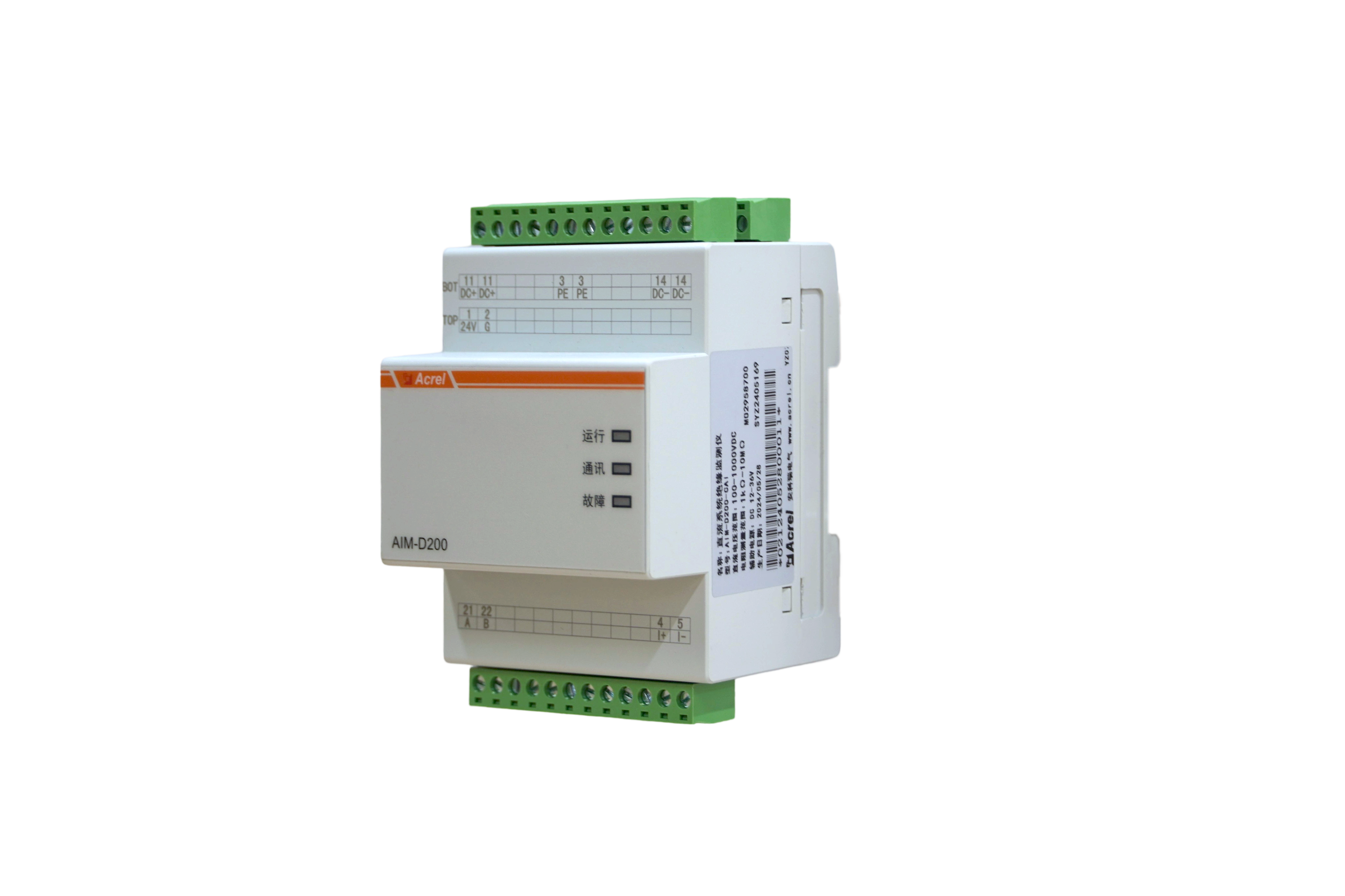

AIM-D200-CAI DC Insulation Monitor

Resistance monitoring

Voltage monitoring

Current monitoring

LED indication

Communication function

Guide rail installation

Plug-in terminals

Parameter

Dimension

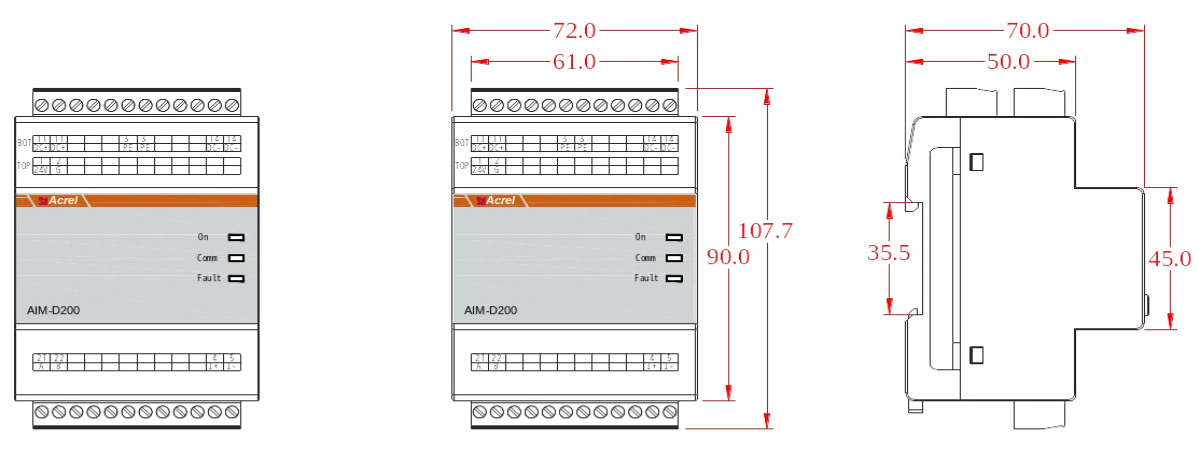

AIM-D200-CAI dimension

Parameter

Items		Technical Parameter
Auxiliary Power Supply		DC 12~36V
Max. Power Consumption		≤6W
Voltage Monitoring	Voltage Range	DC 100~1000V
Voltage Monitoring	Measurement Accuracy	Class 2
Current Monitoring	Current Monitoring	Select the shunt connection according to the rated curren
Current Monitoring	Measurement Accuracy	Class 0.5
Insulation Monitoring	Insulation Resistance Range	1kΩ~10MΩ
	Warning and Alarm Range	10kΩ~10MΩ
	Accuracy	1~10kΩ: ±1k; 10k~500k: ≤5%
	System Leakage Capacitance	≤5μF
	Insulation Monitoring Speed	500ms/cycle; 1000ms/cycle
Alarm Method		LED indicator
Communication		RS485 interface, Modbus-RTU protocol
Installation		DIN-rail installation
Protection Level		IP30
Environment	Operating Temp.	-20~+60℃
	Storage Temp.	-20~+75℃
	Relative Humidity	<95%, without condensation
	Altitude	<2000m

Application

Installation

AIM-D200-CAI DC insulation monitor can be installed on the guide rail.

Guide rail installation: Fix the guide rail at the installation location, insert thedevice into the guide rail, and fix both ends. The installation dimensions are shown in the figure below.

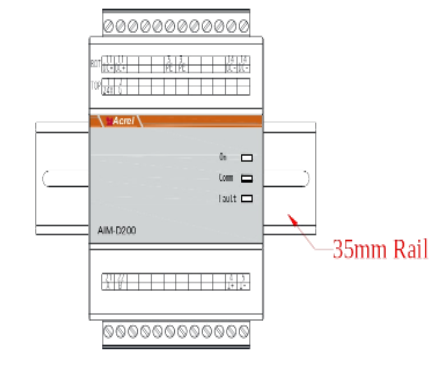

AIM-D200-CAI installation
