Application of the ADL400 rail Energy meter with IoT Power platform in Saudi

Views:1     Author:Elena     Publish Time: 2021-11-17      Origin:Site

1.Project Overview


Saudi customers require to conduct user-end electricity measurement and management of residential buildings and shops. AC three phase energy meter is required to monitor power data and be uploaded to the background system for unified monitoring and management. Acrel recommends the power Internet of Things platform, which can view energy consumption data at different points through the cloud interface and APP, and form reports for customers to consult. The customer chose Acrel ADL400 three-phase rail power meter with AWT100-4G wireless gateway for stable and high-speed data upload through 4G. Customers use the Acrel IoT power cloud platform to realize real-time monitoring of residential energy consumption, saving the cost of human meter reading, and effectively improving the real-time monitoring and visual management of users' electric energy data.



2.Product Introduction


2.1 ADL400 series AC Three Phase DIN rail Multi-function Energy Meter.


Acrel ADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 31st harmonic content and the total harmonic content, realizes the remote communication and the remote control with switching input and relay output and boasts the alarm output. It is fitted with RS485 communication port and adapted to MODBUS-RTU .ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electronic meter in the IEC62053-21standards.


2.2 AWT100 series wireless communication smart gateway.



Acrel AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel. The uplink communication includes 2G, 4G, NB, LoRa, LoRaWAN and othercommunication modes. The downlink interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable



3.Model description



 Model description

display three phase energy meter



More detail



6. Network Topology



 wireless meter connection



7.Installation Site

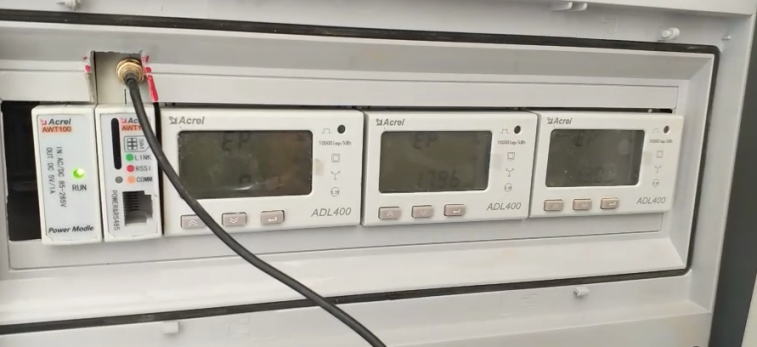

 photo on site





8. In conclusion


ADL400 series of multifunctional energy meters adopt DIN35mm guide rail type installation with small volume, it can measure electric energy and other electrical parameters, can set the clock, rate period and other parameters, high accuracy and good reliability. By RS485 communication, with AWT100 smart wireless gateway, IoT Power system to complete the networking and remote reading. To help customers to simple, effective real-time monitoring of energy consumption in building buildings, greatly save the process of human meter reading, and visual display of all data can be users, improve management efficiency.
