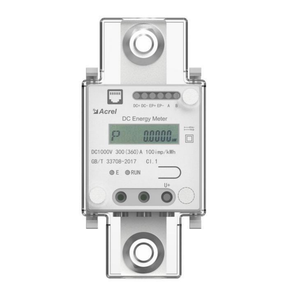

DJSF1352-D-600 MID Certificated DC Energy Meter

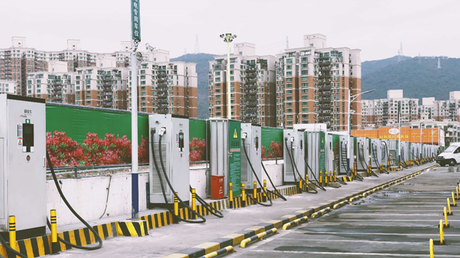

The DJSF1352-D rail-mounted DC power meter, specifically designed for DC charging piles, is capable of measuring voltage, current, power, and energy, among other parameters.


Availability:



Inquire Add to Basket

Model:
DJSF1352-D-600
Brand:
ACREL

Download

DJSF1352-D DC Energy Meter Specification.pdf

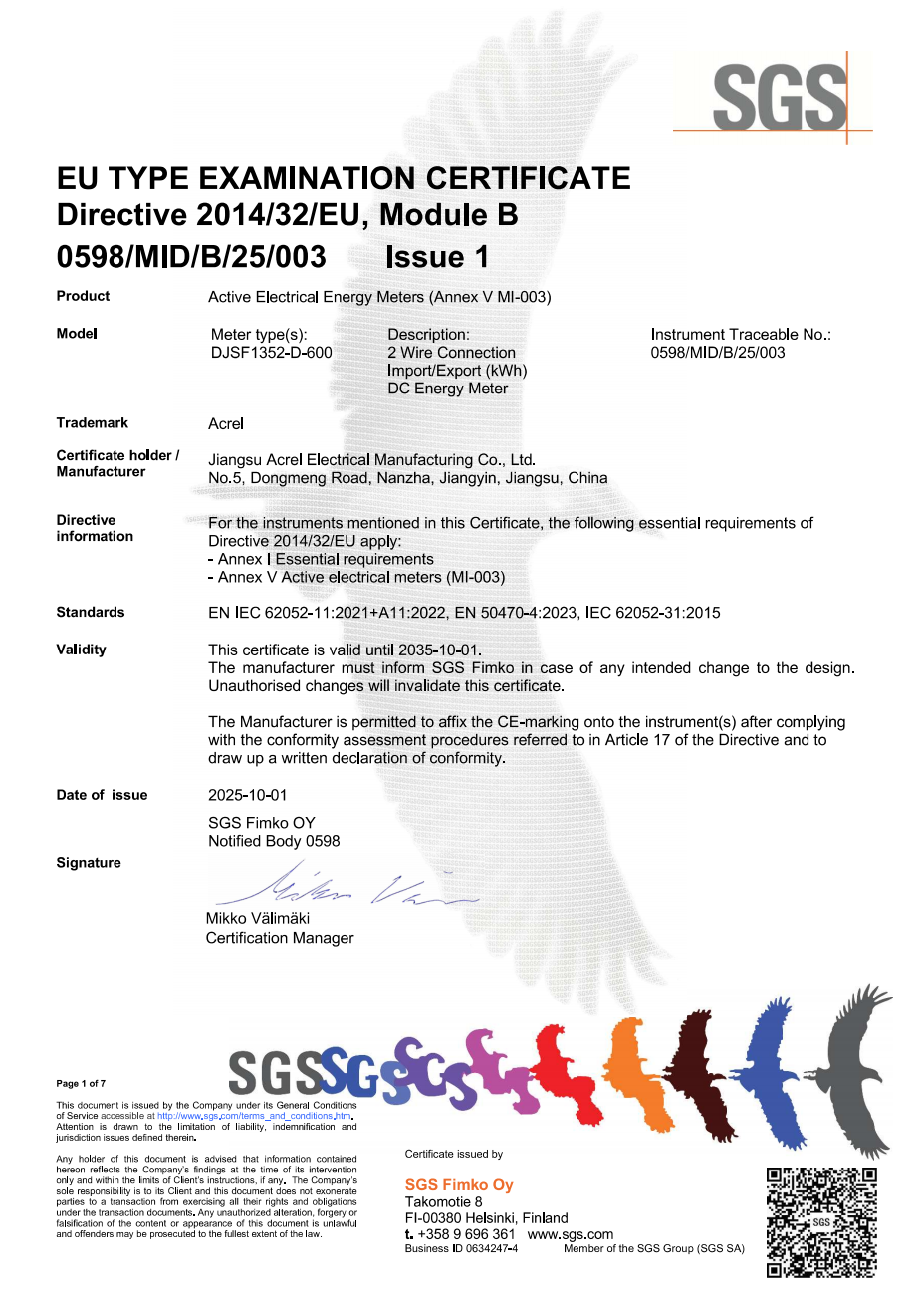

DJSF1352-D-600 MID Certificate.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Model：DJSF1352-D-600

The DJSF1352-D rail-mounted DC power meter, specifically designed for DC charging piles, is capable of measuring voltage, current, power, and energy, among other parameters.

Product Description

DJSF1352-D-600

Model	Clarification
DJSF1352-D-360	DC Energy Meter(Maximum current 360A)
DJSF1352-D-600	DC Energy Meter(Maximum current 600A)
DJSF1352-L	LCD Display Module(For DJSF1352-D-600 extended display)

Parameter

Dimension

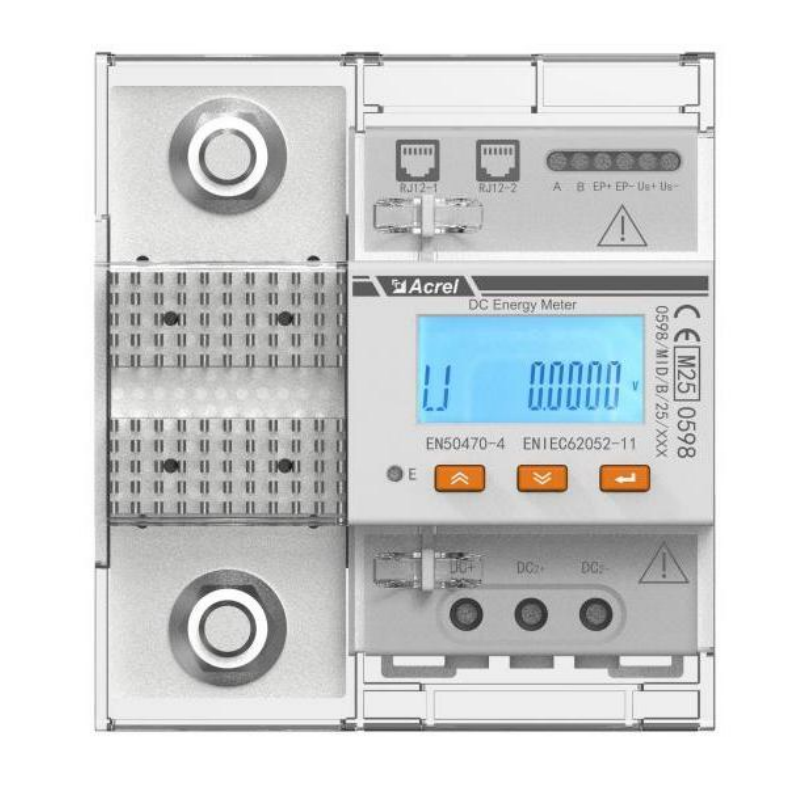

DJSF1352-D-600 dimension

Parameter

Technical parameters		Index
Input	Nominal value	Voltage input	Current input
		DC 0-1000V	DJSF1352-D-360:100(360)A DJSF1352-D-600:4-90(600)A
	Power consumption	Voltage: ≤0.2VA, current ≤0.1VA
Accuracy class		Class B(Class 1)
Function	Display	Segment LCD screen (LCD)
	Communication Interface	RS485
	Communication protocol	Modbus-RTU,DL/T 645-2007,DLT698
	Pulse output	A second pulse output, a energy pulse output
		See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH
Power Supply	Voltage range	DC 9—36V
	Power consumption	≤ 3W
Power frequency withstand voltage		Power supply // Signal input / / Other circuits 4.4kV/1min
Impulse withstand voltage		±6KV
Insulation resistance		≥ 40M Ω
Average barrier-free working hours		≥50000h
Environment	Temperature	Working temperature: -40 °C ~ +70 °C; Storage temperature: -40℃~+70℃
	Humidity	≤95%RH, no condensation, no corrosive gas
	Altitude	≤2000m

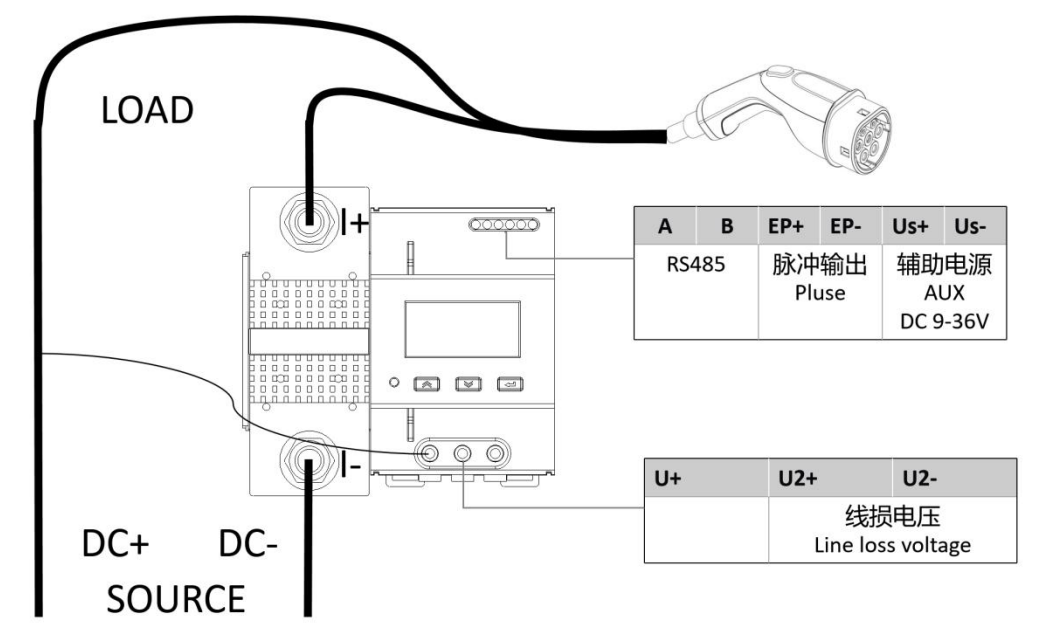

Wiring

DJSF1352-D-600 wiring 1

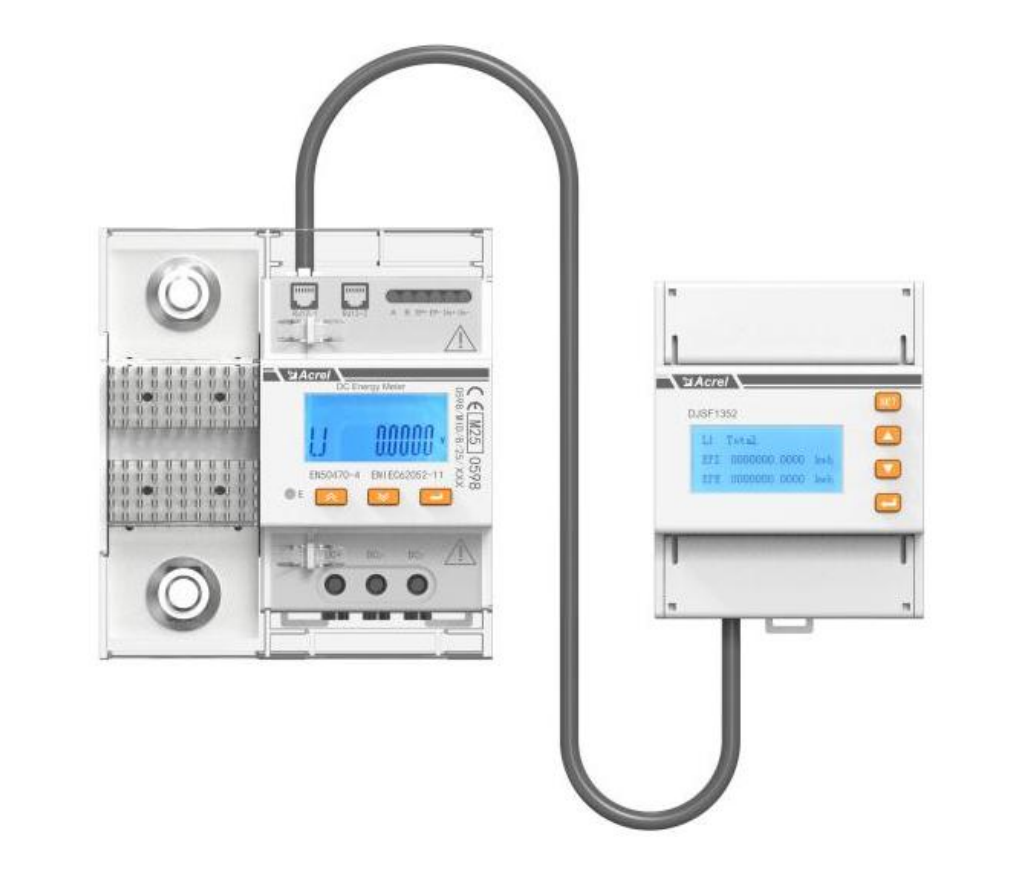

1*Display Module + 1*DC Energy Meter

DJSF1352-D-600 wiring 2

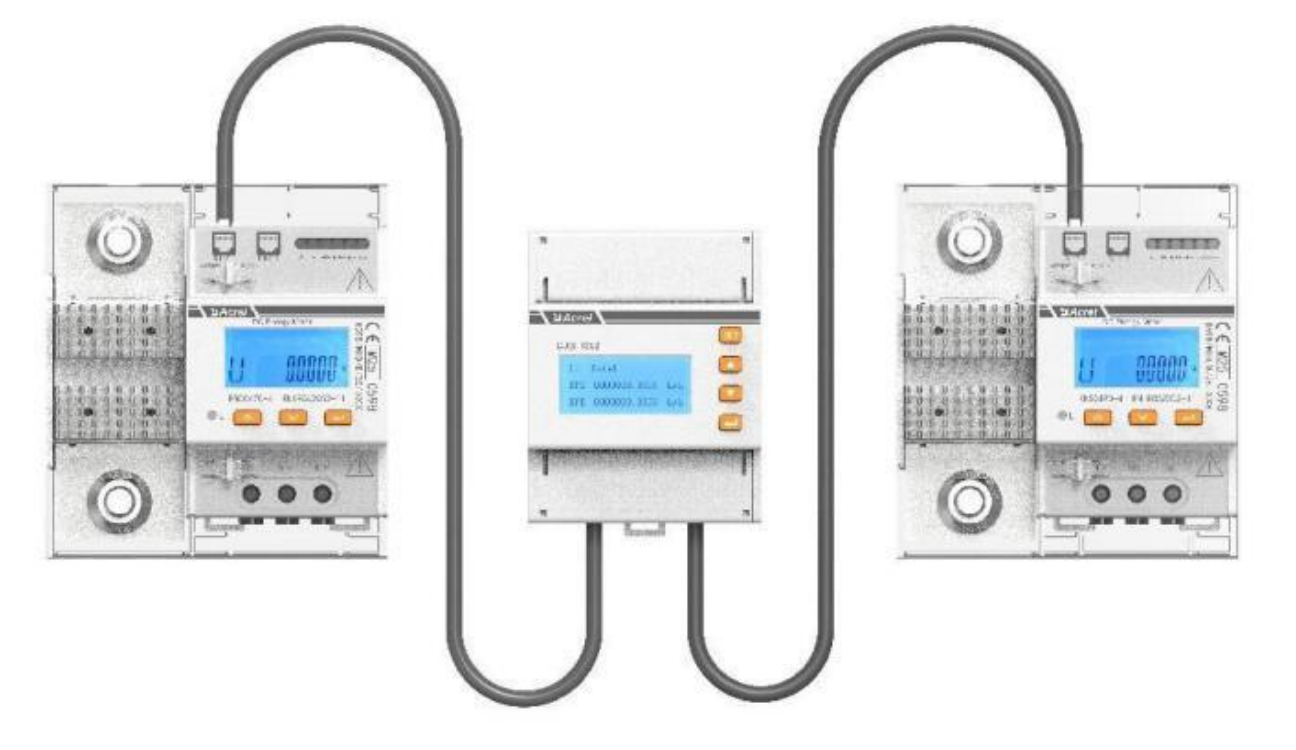

1*Display Module + 2*DC Energy Meter

DJSF1352-D-600 wiring

Precautions

1.Communication interface wiring

The recommended communication connection utilizes a three-core shielded cable, with each core having a cross-sectional area of no less than 0.5mm², connected to A and B respectively, and the shielding layer grounded. The wiring should be kept away from strong cables or other strong electric field environment.

2.Terminal screw torque

The tightening torque of terminal screws shall not exceed 0.5Nm(3.5Lb-In)
