ABAT100-C Battery Monitoring Module

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life.


Availability:



Inquire Add to Basket

Model:
ABAT100-C
Brand:
ACREL

Download

ABAT100 Series Battery Online Monitoring System Specification.pdf

ABAT100 Series Battery Management System(Touch Screen) Specification.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Application：Battery monitoring

Acrel ABAT100 series battery online monitoring system can provide battery operation information such as voltage, internal resistance and internal temperature, including SOC and SOH, and can provide early warning and battery equalization for failed batteries to guarantee battery pack backup time and extend battery pack life. The system has monitoring functions, and is easy to install, maintain and access. The system mainly consists of ABAT100-S single battery monitoring module, ABAT100-C group battery monitoring module, ABAT100-HS collector module and touch screen, etc. The alarm and real-time data can be queried and parameters can be set through the touch screen, and the monitoring platform can be selected to realize networked centralized management.

Product Description

The ABAT100-C battery monitoring module (C module) can be embedded into existing monitoring systems for online monitoring of battery charge and discharge current and ambient temperature. The monitoring system controls and reads data by sending MODBUS commands to the C-module, and each C-module has a settable address. the C-module is extremely simple and easy to install and wire, and can be directly attached to the battery with removable connection cable, which does not affect the battery operation during construction.

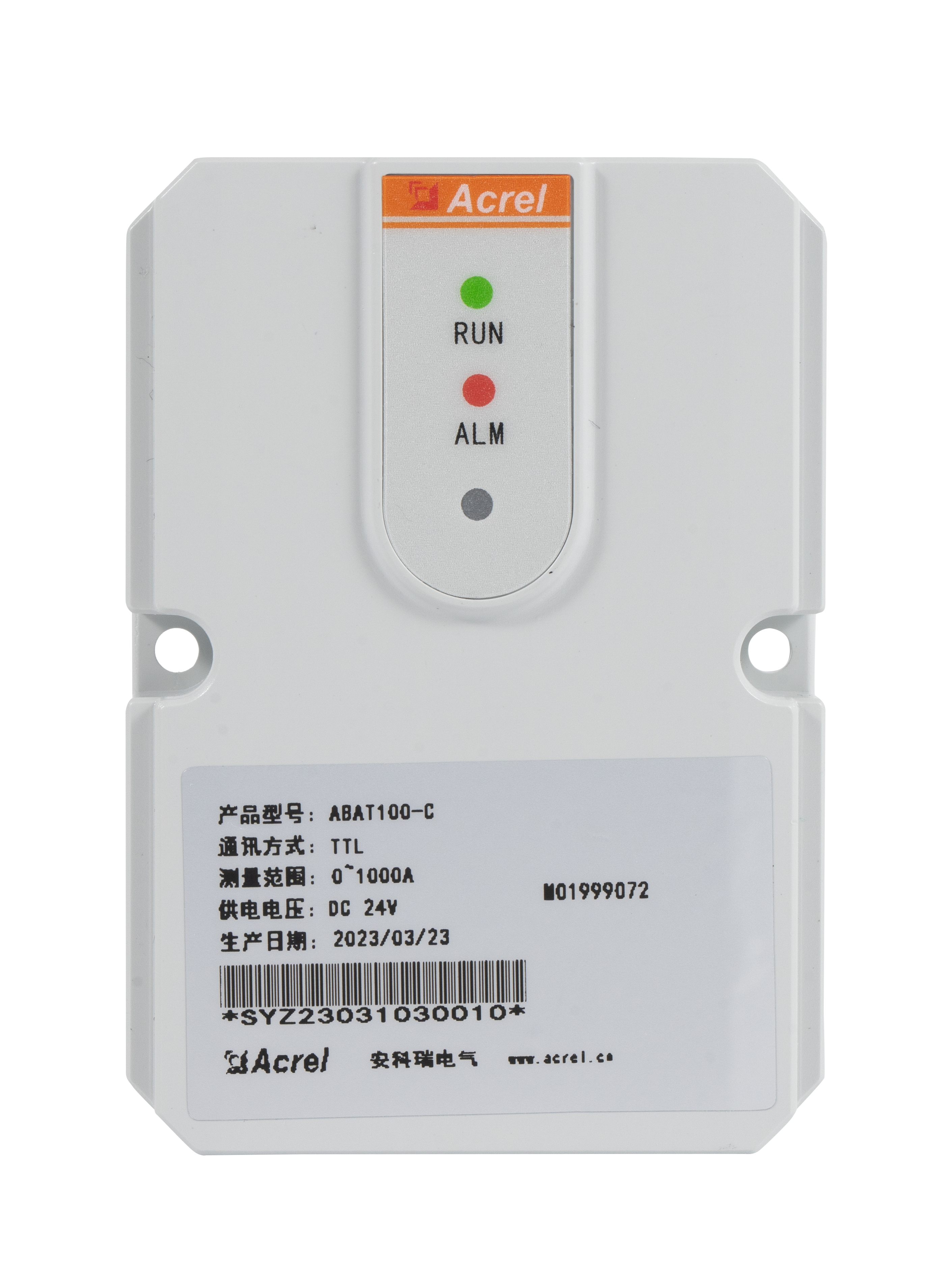

ABAT100-C

ABAT100-C Battery Monitoring Module

Monitor one charge/discharge current with an ambient temperature with a maximum current range of 1000A.

Display

dimension

Parameter

Function	Description
High stability	Reliable and stable long-term operation
Anti-jamming design	High anti-interference design, can block the ripple interference of high power high frequency UPS
Communication protocol	MODBUS-RTU Protocol
Installation method	Tie-down mounting or adhesive mounting
Indicator light	Red and green LED lights, green light as the power light, red light as the indicator light.

Technical parameters	Description
Working Environment	Operating temperature: -10℃～50℃ Relative humidity: 5%~95% Atmospheric pressure intensity: 80~110kPa
Management Capability	One C-module monitors the charge and discharge current of a group of batteries against the ambient temperature
Monitoring Scope	2V, 6V, 12V battery pack
Measurement range and accuracy	Measurement content	Scope	Accuracy
	Charging and discharging current	0~1000A	±1%
	Ambient temperature	-5℃～+105℃	±1°C
Power requirements	DC24V, 1W
Protection	Measuring circuit and power circuit with two levels of protection
Communication Interface	UART port, support MODBUS protocol
Insulation withstand voltage	2000VAC
Weight	90g
