AKH0.66K-φ10 split core current transformer
You are here: Home » Products » Power Sensor » Current Transformer » AKH0.66K-φ10 split core current transformer

AKH0.66K-φ10 split core current transformer

● Split core
● Aperture:10mm
● Current ratio:5A/1.25mA,10-20A/5mA,40-60A/20mA
  • AKH-0.66/K K-φ10
  • ACREL

Download

Manual of AKH-0.66/K K-φ10:ACREL catalog of power sensor.pdf

CE of current transformer:CE(Current Transformer.pdf


Product Description

Overview


Brand:Acrel Place of Origin:China Certificate:CE

AKH-0.66/K K-φ10 series split core current transformer

Current transformer(CT) is used  to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipment.


Product Description


7E7A9868

StandardsIEC/EN61869-1, IEC/EN61869-2


Ratio:5A/1.25mA,10-20A/5mA,40-60A/20mA


Class:0.5


Turns:1


Aperture:10mm


Rated frequency: 50/60Hz


Continuous overload: 120%In


Protection level: IP30



7E7A9870

Security factor: FS<5


Maximum system voltage: 720V AC


Test voltage: 3kV AC(1min)


Rated short-time thermal current: Ith=40~60In


Rated dynamic current: Idyn=2.5Ith


Rated secondary current: X/5A (X/1A upon request)


Casing: Non-flammable, polycarbonate self-extinguishing ABS






Display


尺寸


Dimension(mm) Aperture(mm)
Type
W H D M N Φ1 Φ2
K-φ10 27 40 26 24 36 10 9
K-φ16 31 50 29 28 42 16 17
K-φ24 39 71 46 36 52 24 23.5
K-φ36 42.5 82 58 40 56 33.5 35
K-φ50 46.5 110 90 54 66.5 47 52

组合图

Parameter


AKH-0.66K specification 新

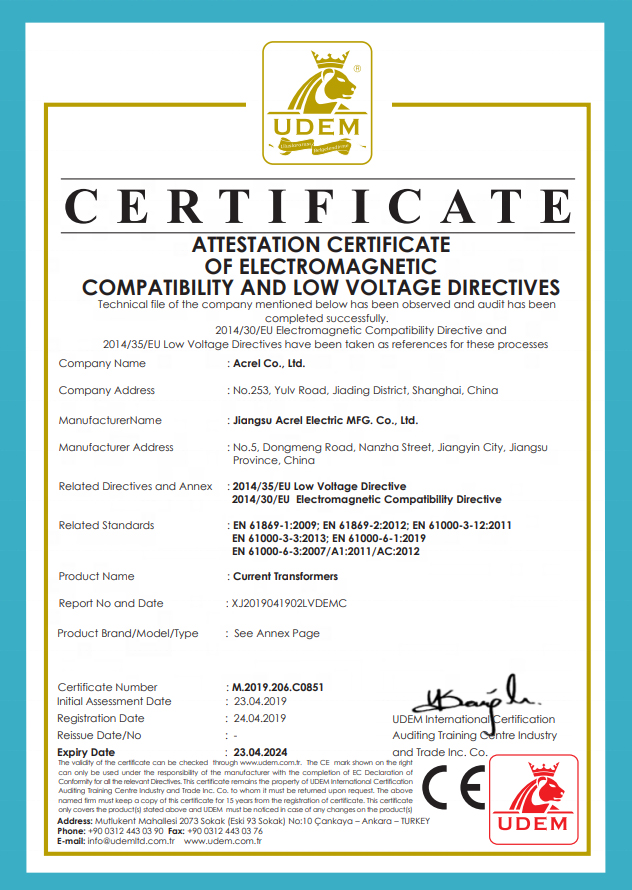

Certificate

current transformers


current transformers 1


current transformers 2



FAQ

How about Acrel service?

1.Acrel provide the user manual and video.

2. We Acrel guarantee a 24 months warranty.

3.Acrel provides a carton package and plastic plate for delivery, the lead time is around 15days.


How to choose a suitable current transformer?

1.What is the voltage level?

2.What is the current ratio?

3.What is the cable diameter or busbar size? We should confirm the hole diameter.
