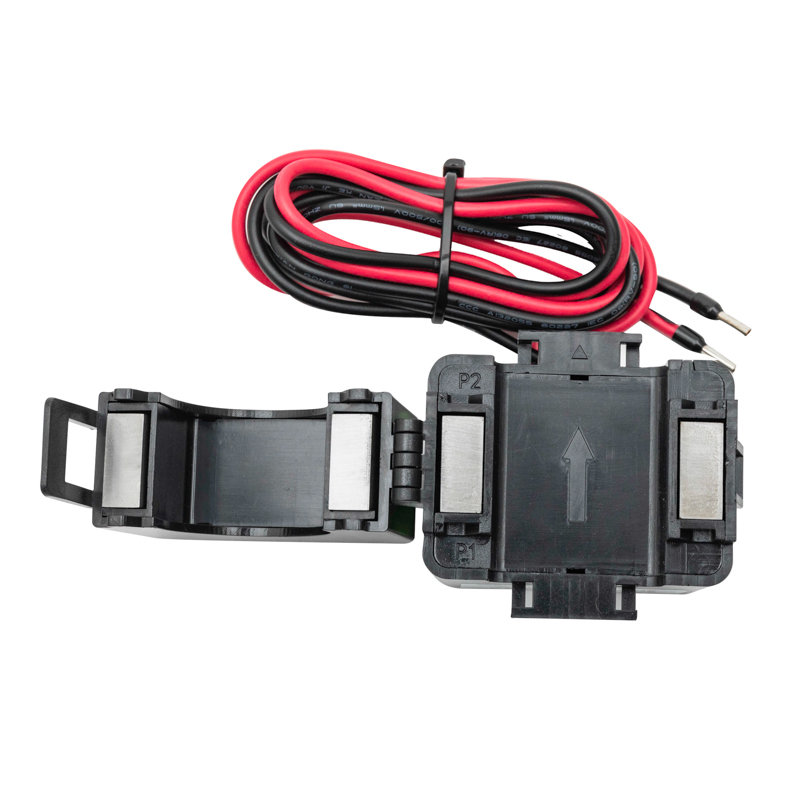

AKH0.66K-φ36 split core current transformer

● Split core

● Aperture：36mm

● Current ratio：100-200A/10mA,200-400A/20mA,300-600A/100mA,400A/40mA,600A/75mA,300-400A/5(1)A,500-600A/5(1)A


Availability:



Inquire Add to Basket

Model:
AKH-0.66/K K-φ36
Brand:
ACREL

Download

Manual of AKH-0.66/K K-φ36：ACREL catalog of power sensor.pdf

CE of current transformer:CE(Current Transformer.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

Certificate：CE

AKH-0.66/K K-φ36 series split core current transformer

Current transformer(CT) is used to transform the high AC current to small easily manageable values.They are connected with the Panel Meter or Relay and they can help to measure the current or protect the equipment.

Product Description

Standards：IEC/EN61869-1, IEC/EN61869-2

Ratio：100-200A/10mA,200-400A/20mA,

300-600A/100mA,400A/40mA,600A/75mA,

300-400A/5(1)A,500-600A/5(1)A

Class：0.5

Turns：1

Aperture：36mm

Rated frequency: 50/60Hz

Continuous overload: 120%In

Protection level: IP30

Security factor: FS＜5

Maximum system voltage: 720V AC

Test voltage: 3kV AC(1min)

Rated short-time thermal current: Ith=40~60In

Rated dynamic current: Idyn=2.5Ith

Rated secondary current: X/5A (X/1A upon request)

Casing: Non-flammable, polycarbonate self-extinguishing ABS

Display

	Dimension(mm)					Aperture(mm)
Type	W	H	D	M	N	Φ1	Φ2
K-φ10	27	40	26	24	36	10	9
K-φ16	31	50	29	28	42	16	17
K-φ24	39	71	46	36	52	24	23.5
K-φ36	42.5	82	58	40	56	33.5	35
K-φ50	46.5	110	90	54	66.5	47	52
