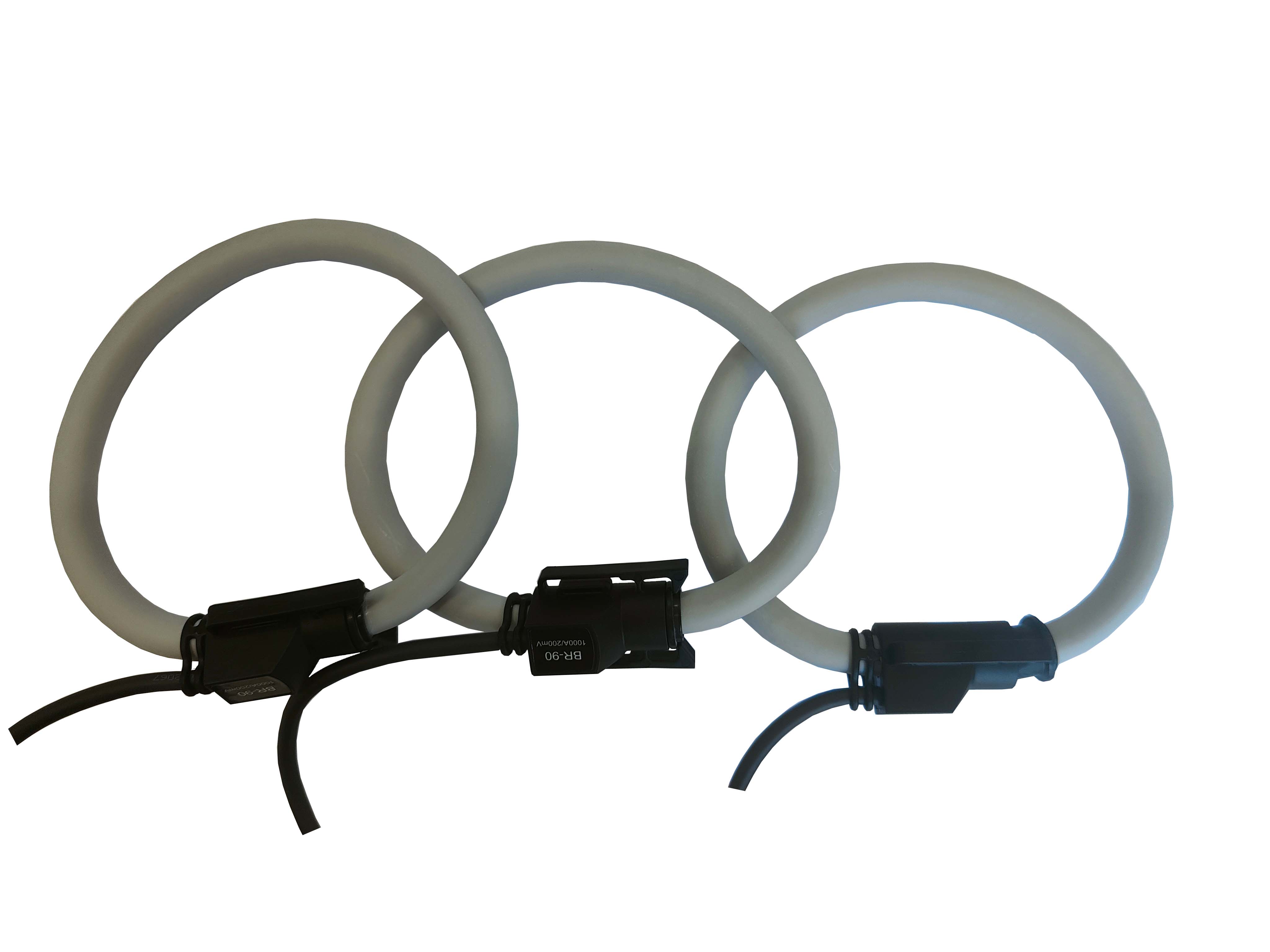

BR-90 Flexible Rogowski Coil

● Input：direct measurement up to AC 2000A ● Output：100mV


Availability:



Inquire Add to Basket

Model:
BR-90
Brand:
ACREL

Product Description

Overview

Brand:Acrel	Place of Origin：China	Certificate：CE
Characteristics: safe voltage power supply, with high precision, high isolation, high safety, low power consumption.
Application：metallurgy, electroplating, welding and other fields.

The BR series flexible Rogowski coil is a high-sensitivity flexible current sensor that can be directly integrated with portable devices such as power analyzers. It is suitable for energy consumption monitoring, high-frequency current monitoring, and DC ripple measurement. Custom sizes are available upon request.

• Excellent linearity

• Strong overload capacity

• Minimal interference from adjacent conductors

• No open-circuit high voltage hazard

• Zero power consumption

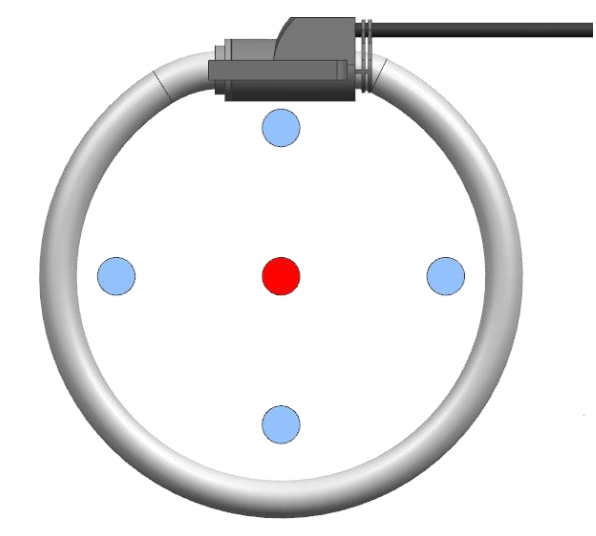

• Small positional error

• Flexible and lightweight for easy installation

• Good linearity

• Wide bandwidth range

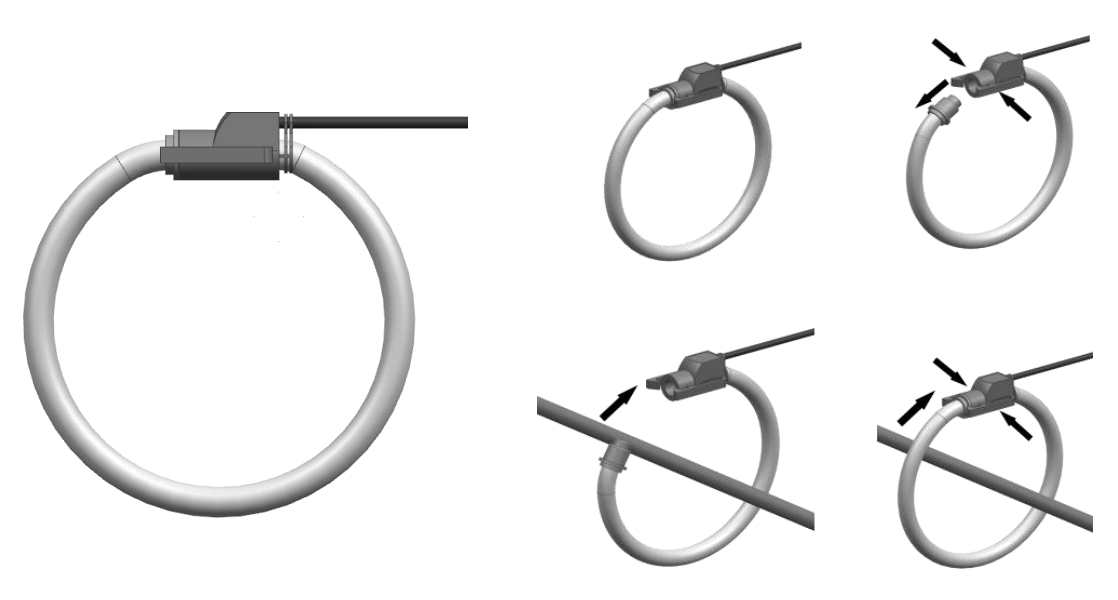

• One-handed connection operation

Product Description

BR-90 Rogowski Coil Transducer

● Perimeter: 300mm

● Diameter: 90mm

● Reference current: 1000-2000A

● Ratio: 100±0.5%mV/kA@50Hz

Application

● Industrial automation

● Metallurgical and electroplating

Parameter

Technical parameter

Model	BR-60	BR-90	BR-150	BR-200	BR-300
Perimeter	200mm	300mm	500mm	650mm	1000mm
Diameter	60mm	90mm	150mm	200mm	300mm
Reference current	1000A	1000A-2000A	2000A-5000A	4000-8000A	5000-10000A
Cross section	12mm
Signal line length	Default 2m, customizable.
Ratio	100±0.5%mV/kA@50Hz Other sensitivities can be customized.
Position error	±1%
OA output (zero drift)	≤1mV
Angular difference	≤0.5°
Linearity	±0.2%
Working temperature	-40℃ - 80℃
Storage temperature	-50℃ - 90℃
Antiflaming	Thermoplastic rubber for wire and cable
Shield	Coil 100%, signal cable 100%
Isolation voltage	Coil: 3000 v; Signal line: 300V
