ADL400-U Three Phase MID Energy Meter

● Bottom in and top out

● 3×230/400V
● 0.01-1(6)A (Secondary access model)
0.1-10(80)A(Direct access model)
0.1-10(100)A(Direct access model)

●RS485(MODBUS-RTU)


Availability:



Inquire Add to Basket

Model:
ADL400-U
Brand:
ACREL

Download

T317 ADL400(MID) Installation and operation instruction T1.5.pdf

ADL400 CE-MID B证 J版.pdf

ADL400-U,ADL400-D 100A B证 SGS0602 Issue 2, ACREL ADL400 signed.pdf

Product Description

Overview

Brand:Acrel

Place of Origin：China

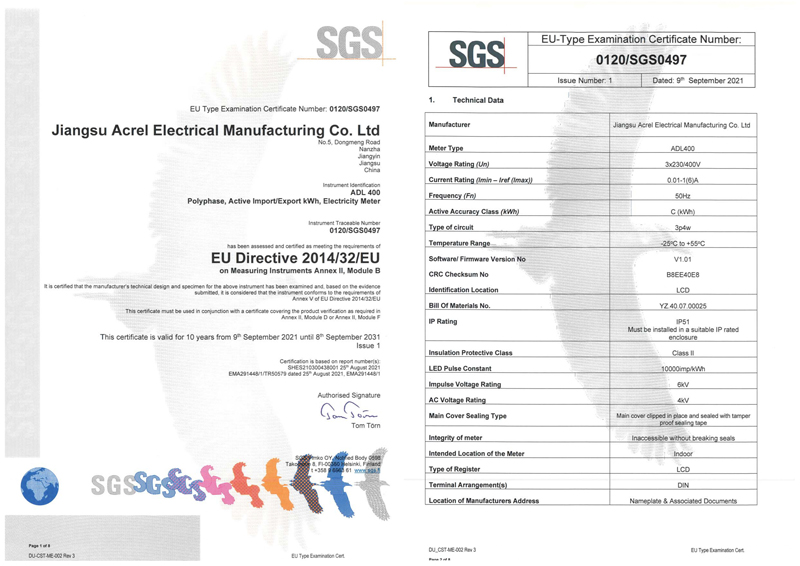

Certificate：CE/MID

ADL400 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation. It integrates the measurement of all electrical parameters with the comprehensive electricity metering and management provides various data on previous 48 months, checks the 2nd-32nd subharmonics and the total harmonic content. It is fitted with RS485 communication port and adapted to MODBUS-RTU. ADL400 can be used in all kinds of control systems, SCADA systems and energy management systems. The meter meet the related technical requirements of electricity meter in the IEC62053-21standards.

Product Description

Accuracy

kWh: Class0.5s

Frequency

45~65Hz

Power Supply(self supply)

154~264Vac

Pulse output

kWh

Input consumption:

<1VA

Dimension(L*W*H)

90*72*65mm

Installation

DIN 35 mm

Clock

Error ≤0.5s/d

Starting current

0.01A/0.001A

LCD display

Wiring

connect via CT

Connect via CT

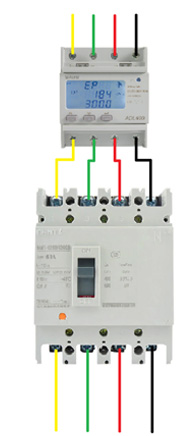

connect directly

Connect directly

Parameter

Dimension

dimension

Parameter

Specification	3 phase 3 wires, 3 phase 4 wires
Voltage	Reference voltage	3×230/400V
	Consumption	<10VA(Single phase)
	Accuracy class	Error±0.2%
Current	Input current	0.01-1(6)A (Secondary access model) 0.1-10(80)A(Direct access model) 0.1-10(100)A(Direct access model)
	Consumption	<1VA(Single phase rated current)
	Accuracy class	Error±0.2%
Power	Active, reactive, apparent power, error±0.5℅
Frequency	45～65Hz（Error±0.2%）
Measuring performance	Energy	0.01-1(6)A,0.1-10(80)A:C(kWh) 0.1-10(100)A:B(kWh)
Measuring performance	Clock accuracy	error≤0.5s/d
Digit signal	Energy pulse output	1 active photocoupler output
Pulse	Pulse Width	80±20ms
Pulse	Pulse constant	Direct access model :400imp/kWh Secondary access model :10000imp/kWh
Communication	Interface and communication	RS485：Modbus RTU
	Range of communication address	Modbus RTU:1~ 247
	Baud rate	1200bps~38400bps
Outline	LWH（mm）	907265
Environment	Temperature	Operating：-25~55℃ Storage：-40~70℃
	Humidity	≤95%（No condensation）
	Altitude	＜2000m
