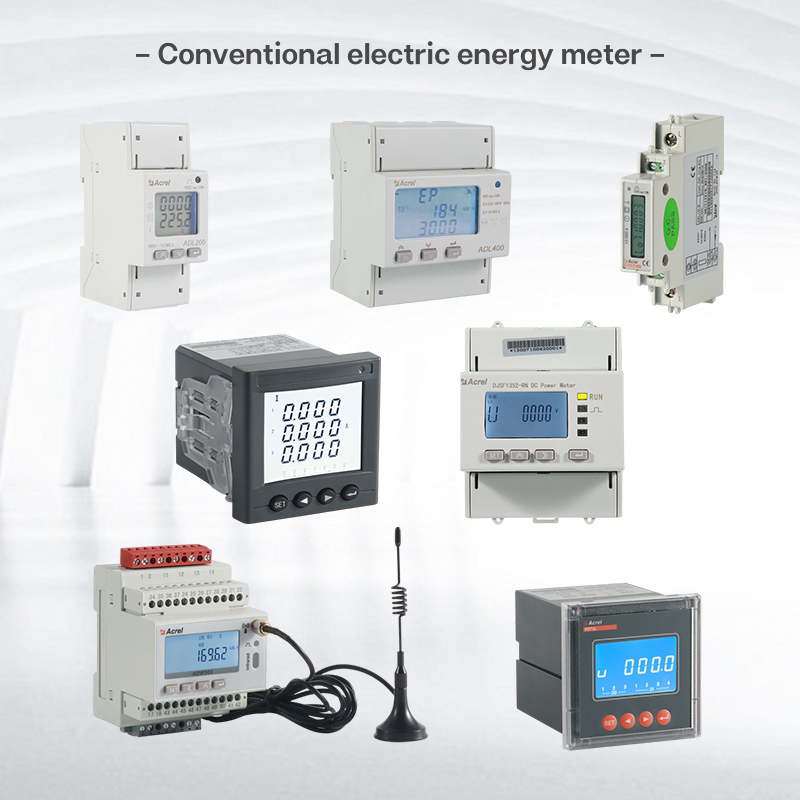

Multifunction Energy Meter Summary

ADW300 Three Phase Wireless Energy Meter

● Measurement:3 Phase voltage,current,power,power factor,etc.

● Communication:RS485,LoRa,NB,2G,4G,WiFi

● Voltage: 3*57.7/100V,3*220/380V,3*380V/660V,3*100V,3*380V,3*660V

● Current:0.01-0.05(6)A,100mV,200mV,333mV

ADW210 Multi Channel Three Phase Energy Meter

● Measurement:Maximum 4 circuits 3 Phase voltage,current,power,power factor,etc.

● Communication:RS485 or LoRa

● Voltage: AC 3×220V/380V

● Current:AC 5A,100A,400A,600A(External opening transformer)

ADL400 Three Phase Energy Meter

● Measurement: 3 Phase voltage,current,power,power factor,etc.

● Communication:RS485

● Voltage:3×100V,3×380V,3×57.7/100V,3×220/380V

● Current:3×1(6)A,3×10(80)A

● CE/MID Certificate

ADL3000-E(DTSD1352) Three Phase Energy Meter

● Measurement: 3 Phase voltage,current,power,power factor,etc.

● Communication:RS485

● Voltage:3×100V,3×380V,3×57.7/100V,3×220/380V

● Current:3×1(6)A,3×10(80)A

● 2-31st  Harmonics

AMC96L-E4/KC Three Phase Energy Meter

● Measurement: 3 Phase voltage,current,power,power factor,etc.

● Communication:RS485

● Voltage:3×100V,3×380V,3×57.7/100V,3×220/380V,3×380/660V

● Current:1A,5A

● Power supply:AC/DC 85-265V, DC24V, DC48V

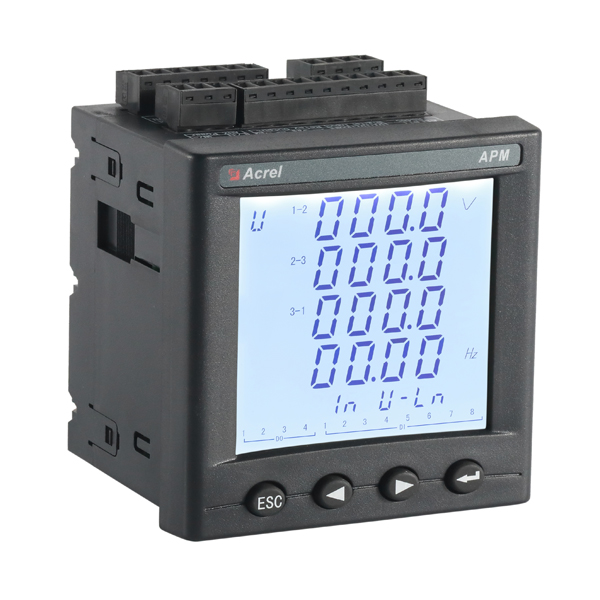

APM510 Three Phase Energy Meter

● Measurement: 3 Phase voltage,current,power,power factor,etc.

● Communication:RS485

● Voltage:3×100V,3×380V,3×57.7/100V,3×220/380V,3×380/660V

● Current:AC 3x1 (1.2) A, AC 3x5(6)A

● Power supply:AC 85V~265V; DC100V～350V

● Basic function: 2DI2DO1EP1C

APM520 Three Phase Energy Meter

● Measurement: 3 Phase voltage,current,power,power factor,etc.

● Communication:RS485

● Voltage:3×100V,3×380V,3×57.7/100V,3×220/380V,3×380/660V

● Current:AC 3x1 (1.2) A, AC 3x5(6)A

● Power supply:AC 85V~265V; DC100V～350V

● Basic function:  4DI2DO2EP1C
